Document ID# 101820
2001 GMC Truck GMC K Sierra - 4WD
2GTEK69U711380758

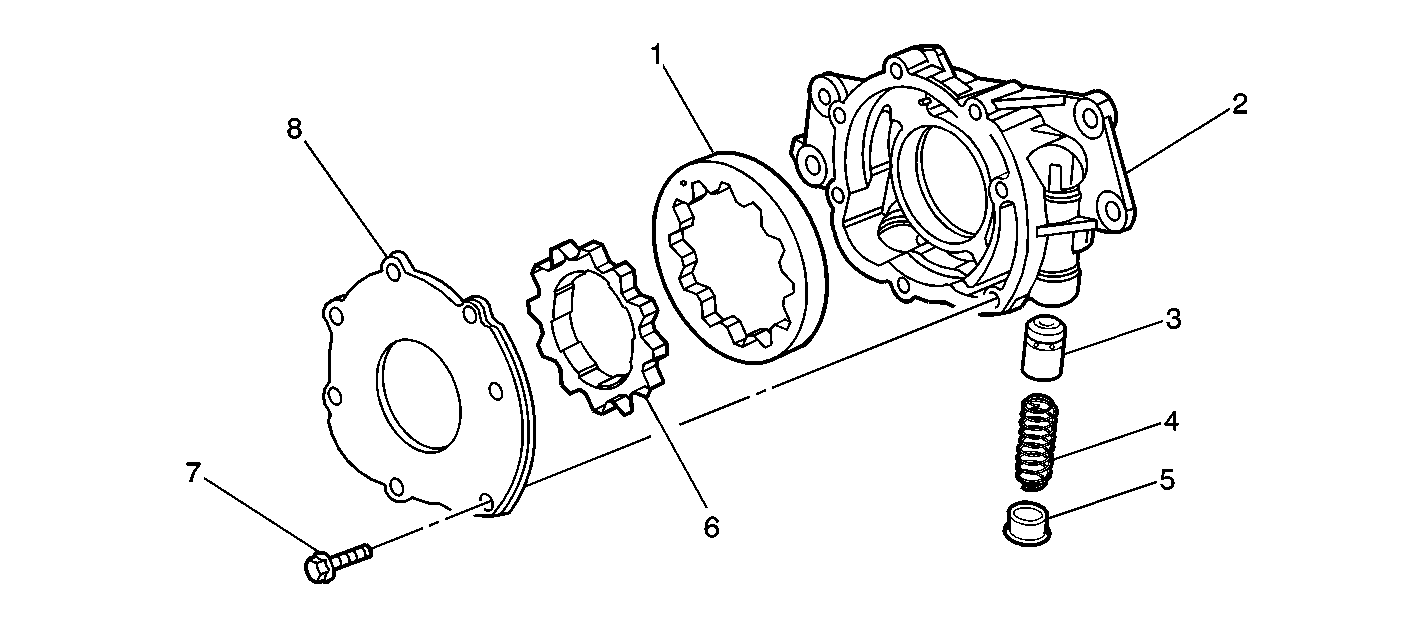

FIGURE Oil Pump Assembly(c)


Object Number: 64190 Size: SF
Click here for detailed picture of above image.
(1) Driven Gear
(2) Oil Pump Housing
(3) Pressure Relief Valve
(4) Pressure Relief Valve Spring
(5) Plug
(6) Drive Gear
(7) Cover Bolt
(8) Cover
